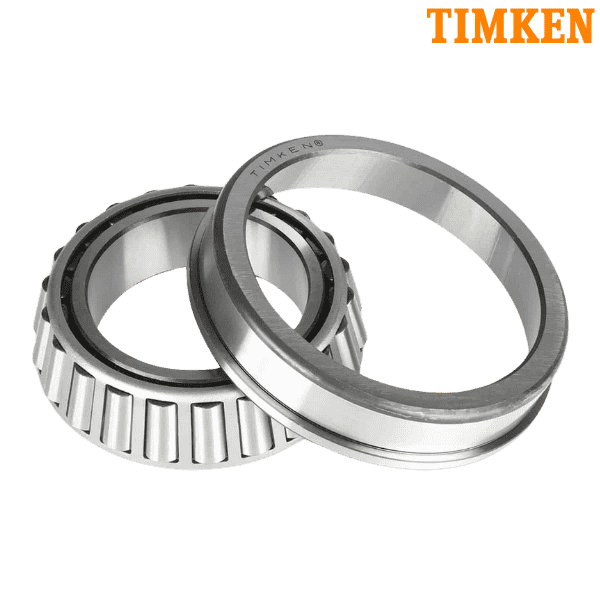

XGA33210/YSA33210R TIMKEN

Brand - TIMKEN
Item Number - XGA33210/YSA33210R TIMKEN
Also Known As - XGA33210 - YSA33210R
Category - Single Row Tapered Roller Bearing (TSF Type)

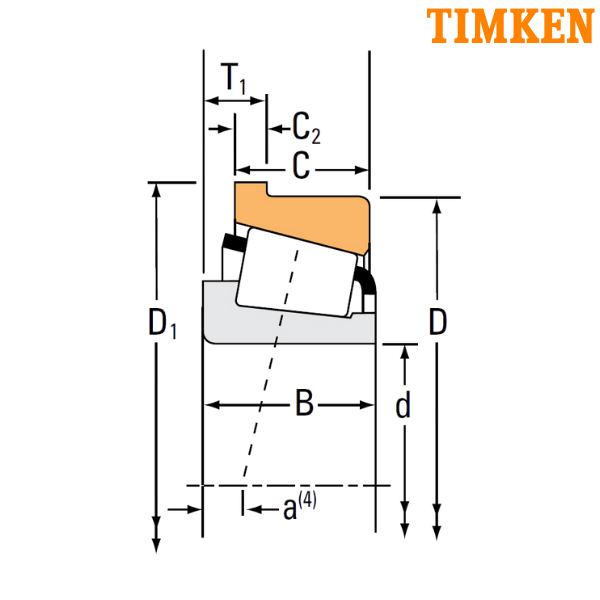

Bore Diameter (d) mm - 40
Bore Diameter (d) inch - 1.5748
Outer Diameter (D) mm - 95
Outer Diameter (D) inch - 3.7402
Width (T1) mm - 10
Width (T1) inch - 0.3937
Dynamic Load Rating (C1) N - 154000
Dynamic Load Rating (C1) lbf - 34600
Factor (e) - 0.41
Factor (Y) - 1.45
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 39900
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 8960
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 28200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 6350
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.41
Basic Static Radial Load Rating (C0) N - 166000
Basic Static Radial Load Rating (C0) lbf - 37300
Cone Width (B) mm - 32
Cone Width (B) inch - 1.2598
Cup Width (C) mm - 27
Cup Width (C) inch - 1.063
Effective Center Location (a) mm - -8.6
Effective Center Location (a) inch - -0.34
Outer Diameter of Outer Ring Flange (D1) mm - 102
Outer Diameter of Outer Ring Flange (D1) inch - 4.0157
Flange Width (C2) mm - 5
Flange Width (C2) inch - 0.1968
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 54
Cone Frontface Backing Diameter (da) inch - 2.13
Cone Backface Backing Diameter (db) mm - 56
Cone Backface Backing Diameter (db) inch - 2.2
Cup Frontface Backing Diameter (Da) mm - 89
Cup Frontface Backing Diameter (Da) inch - 3.5
Geometry Factor (G1) - 48.4
Geometry Factor (G2) - 16.9
Geometry Factor (Cg) - 0.0957
Weight (kg) - 1.23
Weight (lbs) - 2.7
Inner Part Number - XGA33210
Outer Part Number - YSA33210R
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
