Description
Brand - CARTER
Item Number - YNB-88 CARTER
Category - Standard Cylindrical Unsealed Yoke Roller

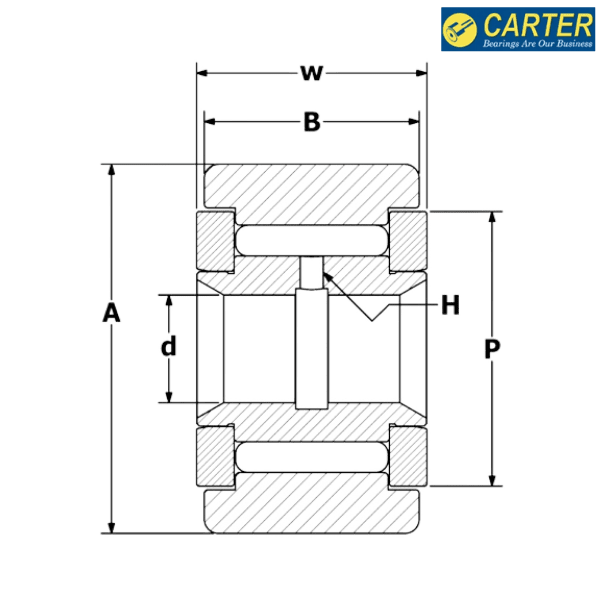

Imperial :
Roller Outer Diameter (A) inch - 2.75
Roller Width (B) inch - 1.5
Bore Diameter (D) inch - 0.75
Overall Width (W) inch - 1.5625
Oil Hole Diameter (H) inch - 0.125
Minimum Boss Diameter (inch) - 1.3125
Shaft Diameter(Ø) Push Fit (inch) - 0.7495
Shaft Diameter(Ø) Drive Fit (inch) - 0.7501
Shaft Diameter(Ø) Press Fit (inch) - 0.7505
Maximum Static Capacity (lbf) - 32900
Basic Dynamic Rating (lbf) - 11720
Limiting Speed (rpm) - 1050
Metric :
Roller Outer Diameter (A) mm - 69.85
Roller Width (B) mm - 38.1
Bore Diameter (D) mm - 19.05
Overall Width (W) mm - 39.6875
Oil Hole Diameter (H) mm - 3.175
Minimum Boss Diameter (mm) - 33.3375
Shaft Diameter(Ø) Push Fit (mm) - 19.0373
Shaft Diameter(Ø) Drive Fit (mm) - 19.05254
Shaft Diameter(Ø) Press Fit (mm) - 19.0627
Maximum Static Capacity (N) - 146346.438
Basic Dynamic Rating (N) - 52133.1384

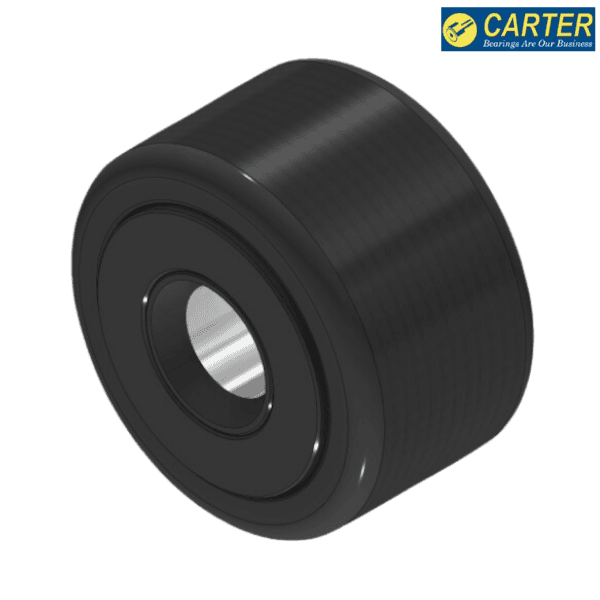

**Images are for representation purposes only
