Description
Brand - FAG
Item Number - Z-507130.AR FAG

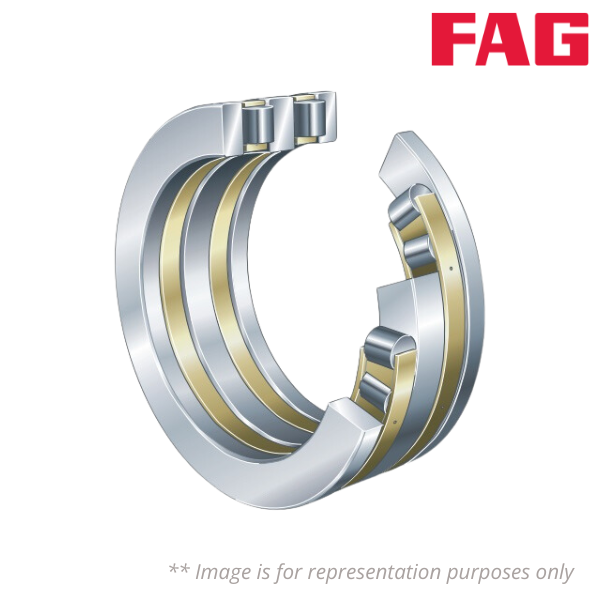

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 141

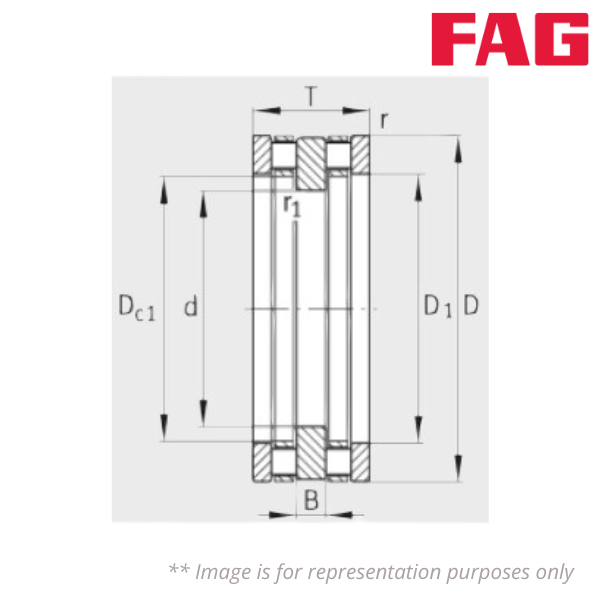

Inner Diameter (d) mm - 440
Outer Diameter (D) mm - 600
Height (T) mm - 190
Inner Width (B) mm - 50
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 3
Bore Diameter Housing Washer (D1) mm - 485
Rip Diameter Shaft Washer (d1) mm - 597
Maximum Diameter of Housing Shoulder (Da) mm - 498
Maximum Recess Radius (ra) mm - 4
Maximum Recess Radius (ra1) mm - 2.5
Basic Dynamic Load Rating (Ca) kN - 2160
Basic Static Load Rating (C0a) kN - 9500
Fatigue Limit Load (Cua) kN - 670
Limiting Speed (nG) rpm - 560
