Description
Brand - FAG
Item Number - Z-507133.AR FAG

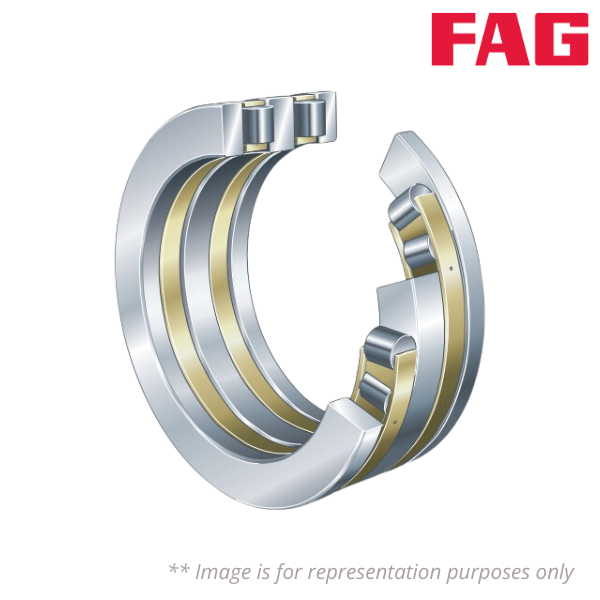

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 196

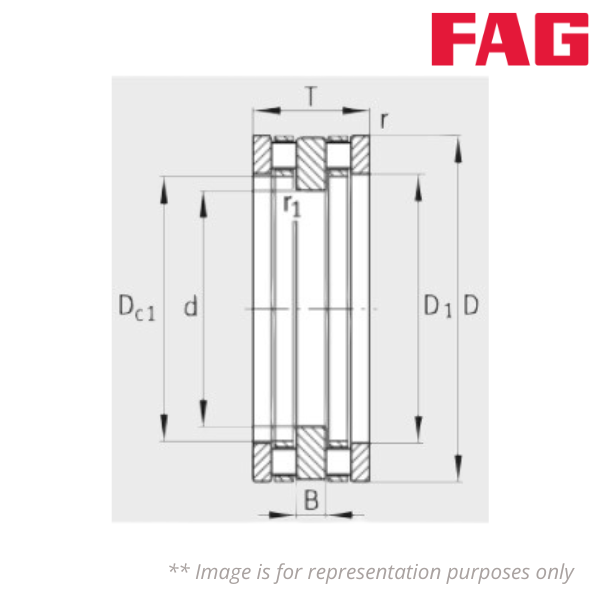

Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 670
Height (T) mm - 206
Inner Width (B) mm - 54
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 3
Bore Diameter Housing Washer (D1) mm - 545
Rip Diameter Shaft Washer (d1) mm - 666
Maximum Diameter of Housing Shoulder (Da) mm - 559
Maximum Recess Radius (ra) mm - 4
Maximum Recess Radius (ra1) mm - 2.5
Basic Dynamic Load Rating (Ca) kN - 2650
Basic Static Load Rating (C0a) kN - 12000
Fatigue Limit Load (Cua) kN - 830
Limiting Speed (nG) rpm - 530
