Description
Brand - FAG
Item Number - Z-507135.AR FAG

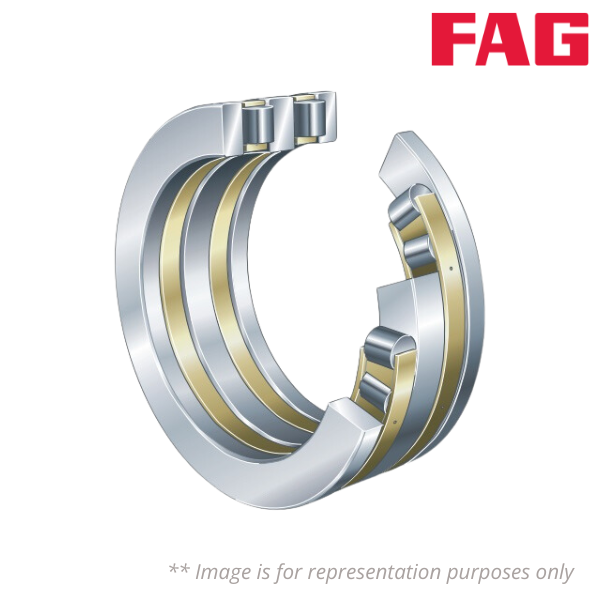

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 271

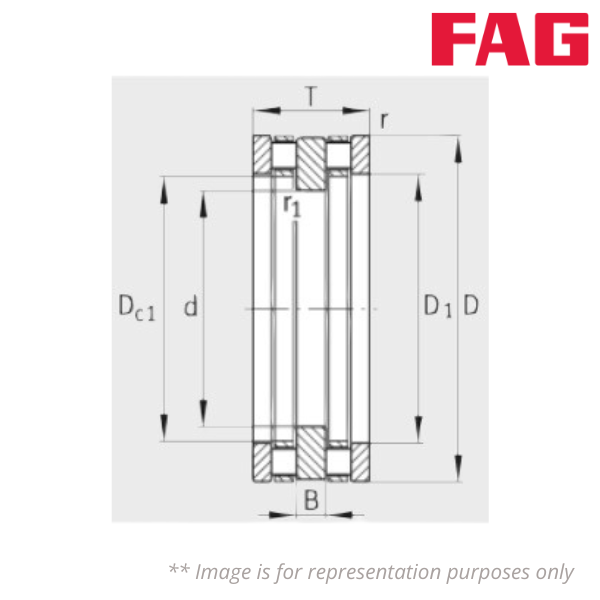

Inner Diameter (d) mm - 560
Outer Diameter (D) mm - 750
Height (T) mm - 230
Inner Width (B) mm - 60
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 3
Bore Diameter Housing Washer (D1) mm - 615
Rip Diameter Shaft Washer (d1) mm - 746
Maximum Diameter of Housing Shoulder (Da) mm - 625
Maximum Recess Radius (ra) mm - 4
Maximum Recess Radius (ra1) mm - 2.5
Basic Dynamic Load Rating (Ca) kN - 3350
Basic Static Load Rating (C0a) kN - 15300
Fatigue Limit Load (Cua) kN - 1010
Limiting Speed (nG) rpm - 450
