Description

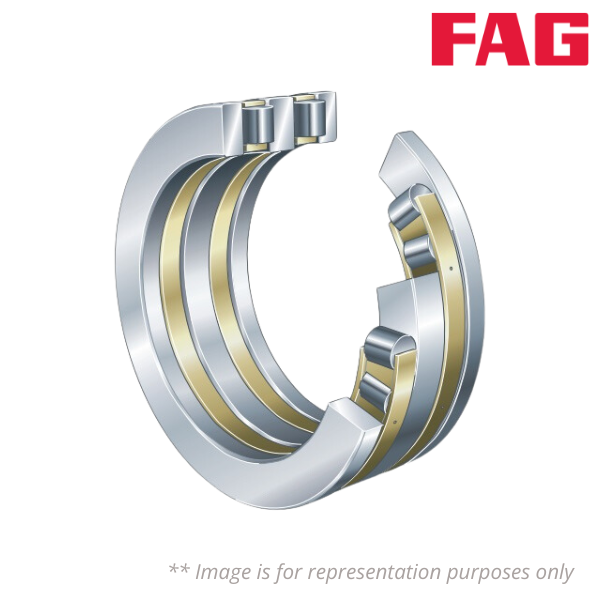

Brand - FAG
Item Number - Z-507138.AR FAG
Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 479

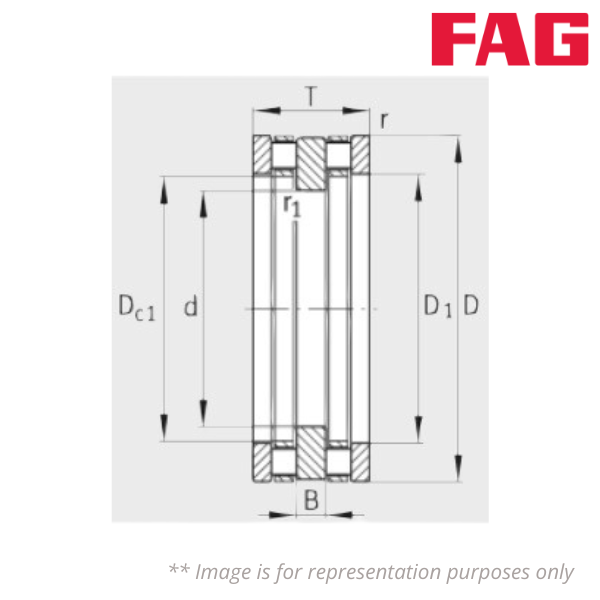

Inner Diameter (d) mm - 670
Outer Diameter (D) mm - 900
Height (T) mm - 280
Inner Width (B) mm - 75
Minimum Chamfer Dimension (r) mm - 6
Minimum Chamfer Dimension (r1) mm - 4
Bore Diameter Housing Washer (D1) mm - 735
Rip Diameter Shaft Washer (d1) mm - 895
Maximum Diameter of Housing Shoulder (Da) mm - 752
Maximum Recess Radius (ra) mm - 5
Maximum Recess Radius (ra1) mm - 3
Basic Dynamic Load Rating (Ca) kN - 4550
Basic Static Load Rating (C0a) kN - 21600
Fatigue Limit Load (Cua) kN - 1380
Limiting Speed (nG) rpm - 380
