Description
Brand - FAG
Item Number - Z-507140.AR FAG

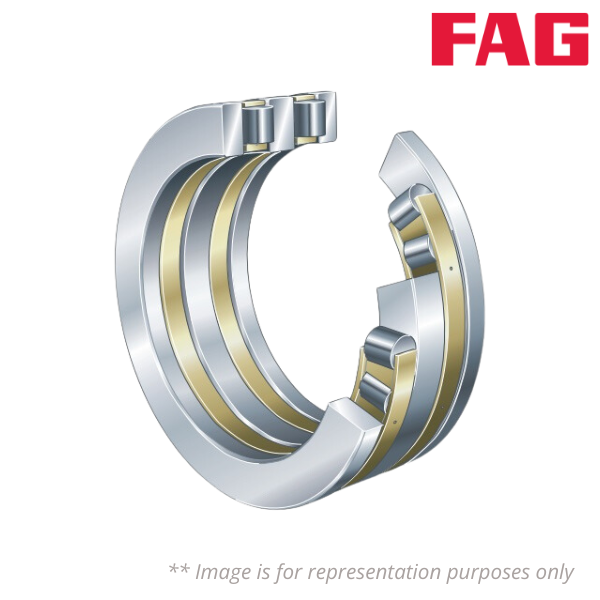

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 623

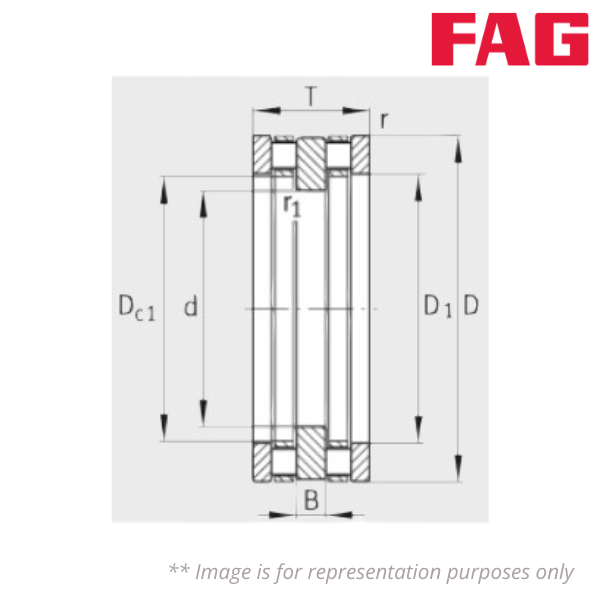

Inner Diameter (d) mm - 750
Outer Diameter (D) mm - 1000
Height (T) mm - 300
Inner Width (B) mm - 80
Minimum Chamfer Dimension (r) mm - 6
Minimum Chamfer Dimension (r1) mm - 4
Bore Diameter Housing Washer (D1) mm - 820
Rip Diameter Shaft Washer (d1) mm - 995
Maximum Diameter of Housing Shoulder (Da) mm - 840
Maximum Recess Radius (ra) mm - 5
Maximum Recess Radius (ra1) mm - 3
Basic Dynamic Load Rating (Ca) kN - 5300
Basic Static Load Rating (C0a) kN - 26000
Fatigue Limit Load (Cua) kN - 1610
Limiting Speed (nG) rpm - 340
