Description
Brand - FAG
Item Number - Z-507142.AR FAG

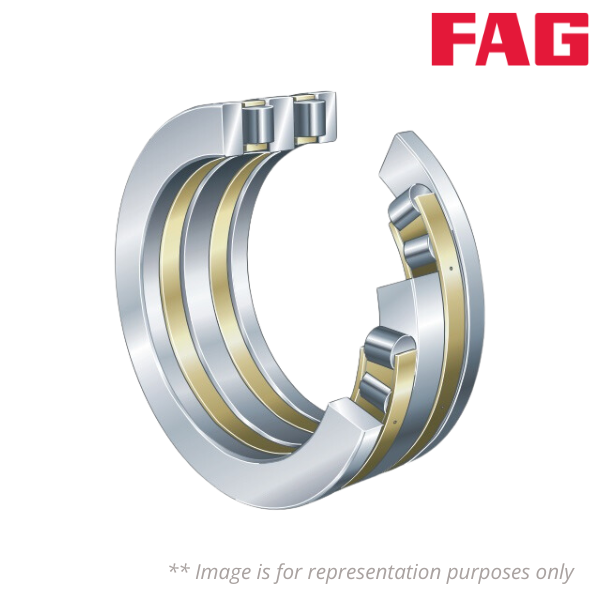

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 799

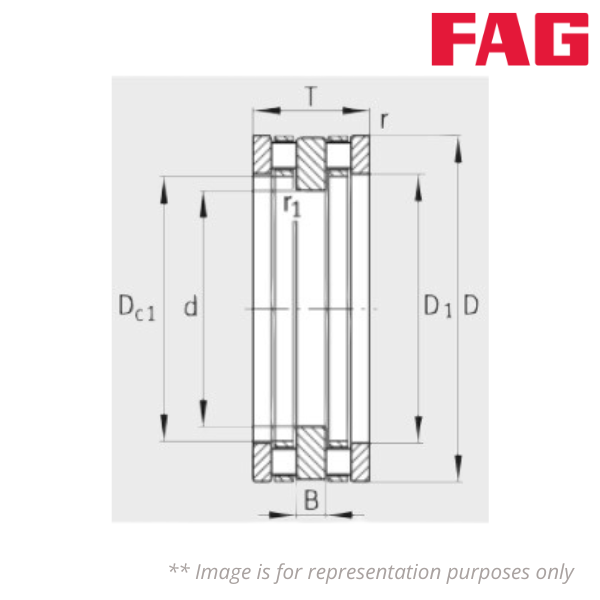

Inner Diameter (d) mm - 850
Outer Diameter (D) mm - 1120
Height (T) mm - 320
Inner Width (B) mm - 85
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 5
Bore Diameter Housing Washer (D1) mm - 930
Rip Diameter Shaft Washer (d1) mm - 1114
Maximum Diameter of Housing Shoulder (Da) mm - 948
Maximum Recess Radius (ra) mm - 6
Maximum Recess Radius (ra1) mm - 4
Basic Dynamic Load Rating (Ca) kN - 6100
Basic Static Load Rating (C0a) kN - 31500
Fatigue Limit Load (Cua) kN - 1830
Limiting Speed (nG) rpm - 280
