Description
Brand - FAG
Item Number - Z-528429.AR FAG

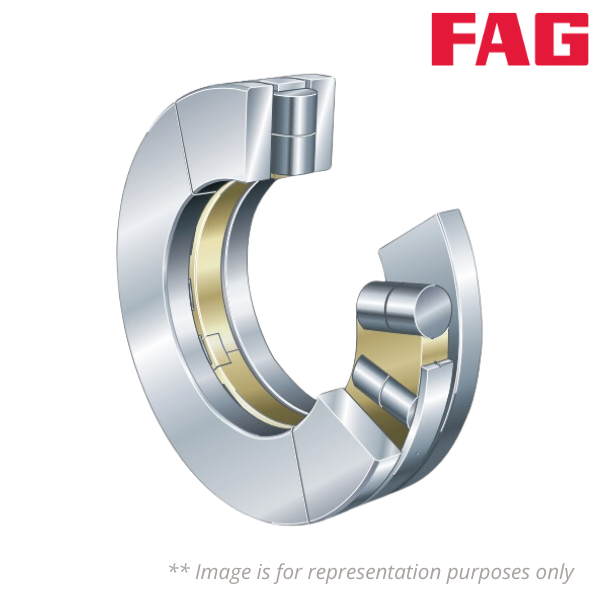

Category - Split, Single Direction Axial Cylindrical Roller Bearing, Double Row
Weight (Kg) - 258

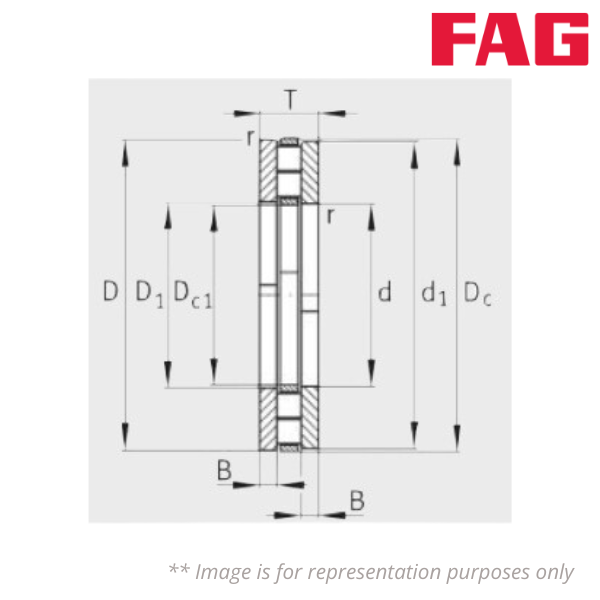

Inner Diameter (d) mm - 475.235
Outer Diameter (D) mm - 736.75
Height (T) mm - 146.1
Minimum Chamfer Dimension (r) mm - 5
Bore Diameter Housing Washer (D1) mm - 475.235
Rip Diameter Shaft Washer (d1) mm - 736.75
Basic Dynamic Load Rating, Axial (Ca) kN - 5200
Basic Static Load Rating (C0a) kN - 24500
Fatigue Limit Load (Cua) kN - 1670
Limiting Speed (nG) rpm - 530
